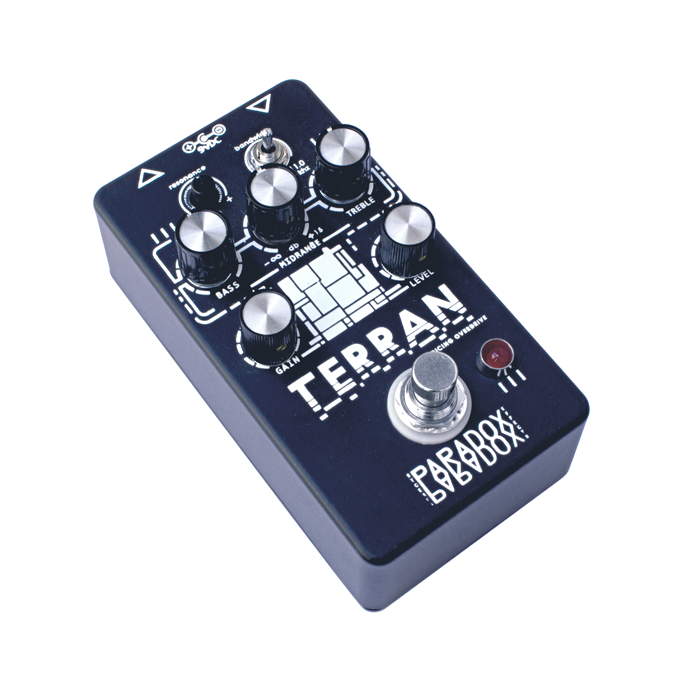

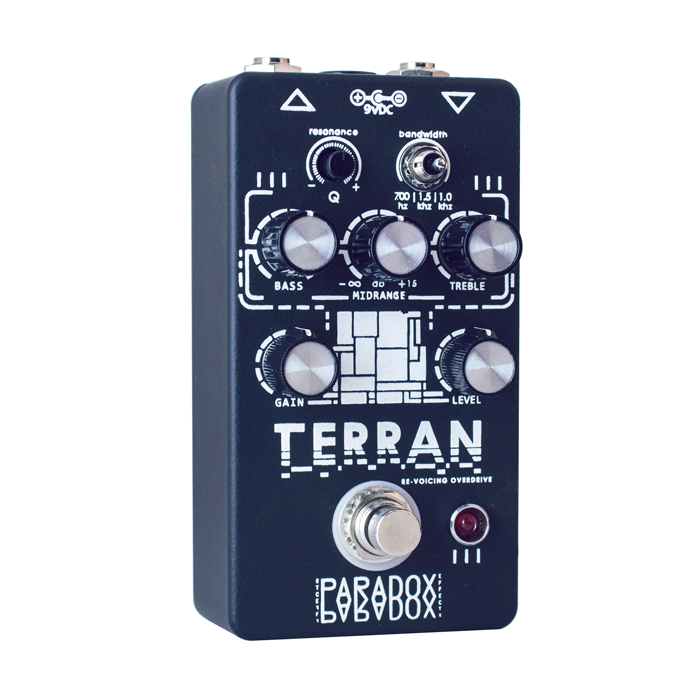

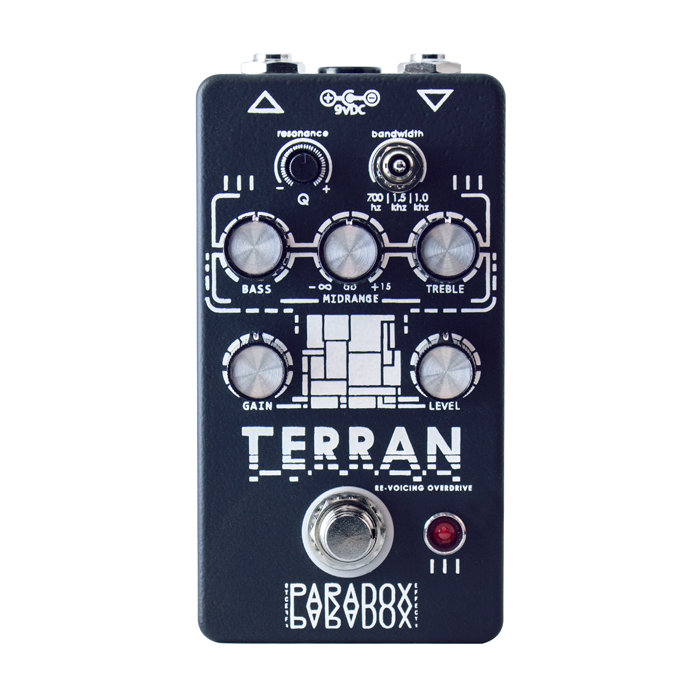

The Terran is a mid/high gain Overdrive with a parametric equalizer, that was inspired by the legendary Ampeg V4. This Re-Voicing drive can change the resonant qualities of your tone, emulating different types of guitar pick-ups and tube amp voices.
How can this be achieved?
Use it as a cab simulator? No problem.
Put it at the beginning of your pedal chain to re-voice your guitar pick-ups, after a fuzz or distortion to have a better articulated equalization, or as a pre-amp for your tube amplifier to change the overall voice of your tone.
LEVEL: Controls the Volume output.
GAIN: Controls the drive level of the effect, softer to your left, harsher to the right.
BASS: Bass level in the mix.
TREBLE: Controls the high frequency levels.
MIDRANGE: Controls the active mid levels, amplifying up to 15db.
RESONANCE(Q): Increases the selectivity of the midrange filter, more selective to the right, flatter to the left.
BANDWIDTH: : Select the central frequency of the Midrange filter between 700Hz, 1.0kHz and 1.5kHz.

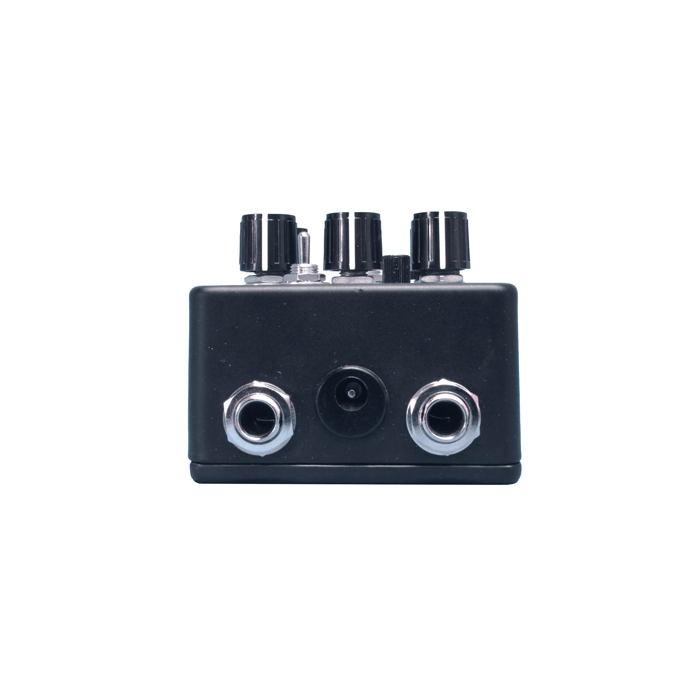

Terran uses a 9 volt DC power supply, positive barrel, negative tip at the center with a 2.1mm diameter.
Current Draw: 35mA
We recommend using a regulated power supply with our pedals. Using one with poor regulation, not isolated and poor filtering can result in unexpected noise or unwanted higher voltages that can take the pedal out of operation.
